| Name: | Hydraulic Submersible Dredging Pump | Size: | 100-350mm |
|---|---|---|---|
| Capacity: | 60-1200m3/h | Head: | 5-43m |
| Max. partículas: | 120 mm | Max. concentration: | 70% |
| Rango de temperatura: | ≤80°C | Agitadores o cabezales de corte: | Disponible |
| Sealing arrangement: | Double mechanical seal | Materiales: | El contenido de cromo alto, el hipercromo, el SS304, el SS316L, el CD4MCu, el 2205 etc. |
| Tipo: | Bomba de dragado hidráulica sumergible | Modelo: | Su bomba de dragado sumergible |
| Otros: | Bomba de dragado hidráulica sumergible | Aplicación: | Extracción y transporte de arena, extracción de arena y grava, dragado de puertos y puertos deportiv |

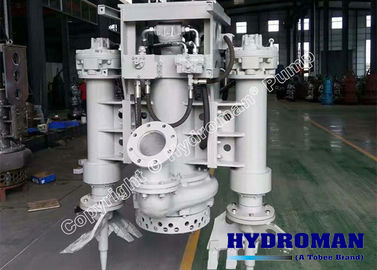

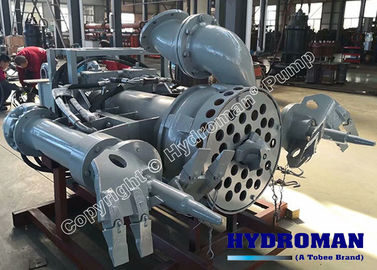

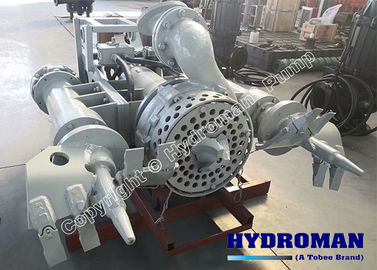

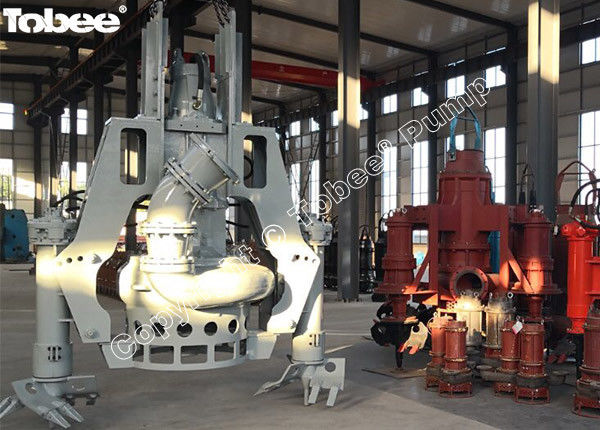

Hydroman™(A Tobee Brand) Hydraulic Submersible Dredging Pump with Cutter is designed for handling rocks, slurry, gravel, sand, stone, minerals, bentonite and others, with the shortest delivery times. Hydroman pumps deliver massive solids production at very low operational costs. The THY hydraulic dredging pump can install cutters or agitators on various excavators to work like submersible dredging pumps, It can be also used in various hydraulic stations.
Hydroman™(A Tobee Brand) Hydraulic Submersible Dredging Pump with Cutter Design Features:
√ Submersible heavy duty agitator pump, hydraulic driven with variable RPM
√ All Pumps have standard high efficiency agitator to lift settled solids.
√ High abrasion resistance with high chrome wear parts.
√ Low rotation speed to reduce wear effect.
√ Agitators, Cutters, Excavators are available for options
√ Able to handle up to 70% solids by weight.
√ Easy installation on the boom of hydraulic excavators.
Hydroman™(A Tobee Brand) Hydraulic Submersible Dredging Pump with Cutter Structural Drawing:
Hydroman™(A Tobee Brand) Hydraulic Submersible Dredging Pump with Cutter Applications:
Industry: Pumping industrial waste, extraction of slag, forge scale, cal-cines, sludge, setting sludge, petroleum and tar residues, Thermal Power plants – Ash pits, Construction and public works, Inert wash sludge, Marble dust, All types of effluent with solids in suspension, Sewage, De-watering etc
Dredging, Sand & Gravel: Sand extraction and transport, Sand and gravel mining, Dredging harbors and marinas, Port maintenance, Dredging of canals and harbors, Clean-up of rivers, lakes and lagoons, Dam dredging, Beach reclamation, Heavy soils etc
Mining: Mining and tailings reclamation, Clean-up of setting tanks, Extraction of coal, minerals and sand etc.
Offshore: Underwater work, Ecological recovery, Clean-up of locks, Emptying of caissons and bulkheads, Barge transfer etc
