Datos del producto:
Pago y Envío Términos:
|
| Name: | Submersible Dredging Pump with Cutter | Size: | 50-400mm Submersible Sand Pump |
|---|---|---|---|
| Capacity: | 24-2400m3/h | Head: | 13.5-59m |
| Max. partículas: | 60 mm | Max. concentration: | 70% |
| Profundidad de trabajo máxima: | ≤ 150 m | Agitadores o cabezales de corte: | Disponible |
| Sealing arrangement: | Double mechanical seal | Materiales: | Aleación hipercrómica, Hierro fundido, SS304, SS316L, Acero inoxidable dúplex, etc. |
| Modelo: | TSQ Bomba de dragado sumergible | Aplicación: | Extracción y transporte de arena, extracción de arena y grava, dragado de puertos y puertos deportiv |
| Tipo: | Bomba de dragado sumergible eléctrica |
Hydroman™(A Tobee Brand) Electric Submersible Dredging Pump with Cutter with excellent wear-resistant material, advanced structure and wide flowing passage of strong delivery ability feature a non-clog pump design for high solids industrial pumping applicationsare, are heavy duty agitator submersible slurry pumps, dredge Pumps, sand Pumps, and sludge Pumps working in the underwater industry, capable of handling slurry, sand, gravel, solids and all kinds of sludge in diverse applications related to the dredging, construction, oil and mining industry as well as marine, energy, and industrial sectors. TJQ Submersible Slurry Pumps deliver massive solids production at very low operational costs. Hydroman offers the deepest submersible, largest capacity, high head, long distance, heavy duty slurry pumps available on the market.
Hydroman™(A Tobee Brand) Electric Submersible Dredging Pump with Cutter Specification:
Size: 50-400mm
Capacity: 24-2400m3/h
Head: 13.5-59m
Power: 7.5-315m
Max. particle: 60mm
Materials: High chrome alloy, Cast iron, SS304, SS316L, Duplex SS etc.
Hydroman™(A Tobee Brand) Electric Submersible Dredging Pump with Cutter Structural Drawing:

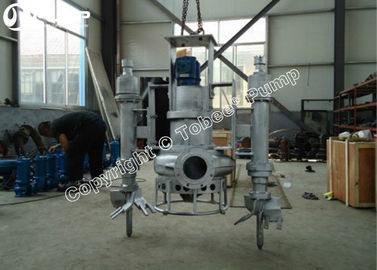

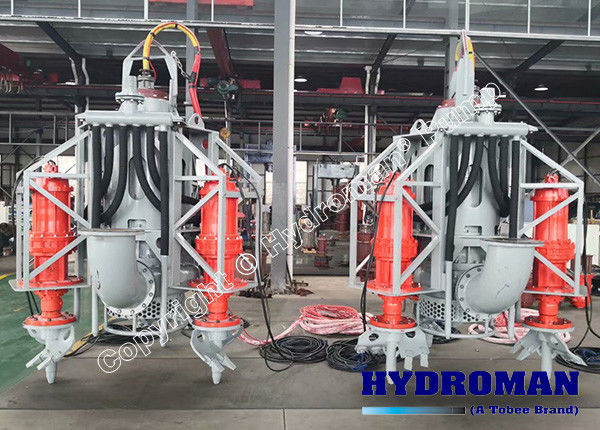

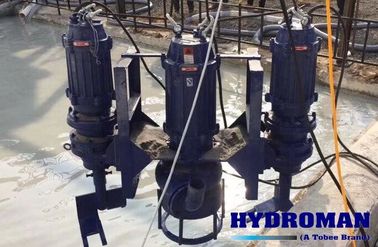

Hydroman™(A Tobee Brand) Electric Submersible Dredging Pump with Cutter Reference Photos:
Hydroman™(A Tobee Brand) Electric Submersible Dredging Pump with Cutter Applications:
Industry: Pumping industrial waste, extraction of slag, forge scale, cal-cines, sludge, setting sludge, petroleum and tar residues, Thermal Power plants – Ash pits, Construction and public works, Inert wash sludge, Marble dust, All types of effluent with solids in suspension, Sewage, De-watering etc
Dredging, Sand & Gravel: Sand extraction and transport, Sand and gravel mining, Dredging harbors and marinas, Port maintenance, Dredging of canals and harbors, Clean-up of rivers, lakes and lagoons, Dam dredging, Beach reclamation, Heavy soils etc
Mining: Mining and tailings reclamation, Clean-up of setting tanks, Extraction of coal, minerals and sand etc.
Offshore: Underwater work, Ecological recovery, Clean-up of locks, Emptying of caissons and bulkheads, Barge transfer etc
